Crane conductor rail includes single pole conductor rail, seamless conductor rail, and copperhead solid conductor rail. As a leading crane manufacturer, Weihua provides all kinds of power supply systems for bridge cranes and gantry cranes.

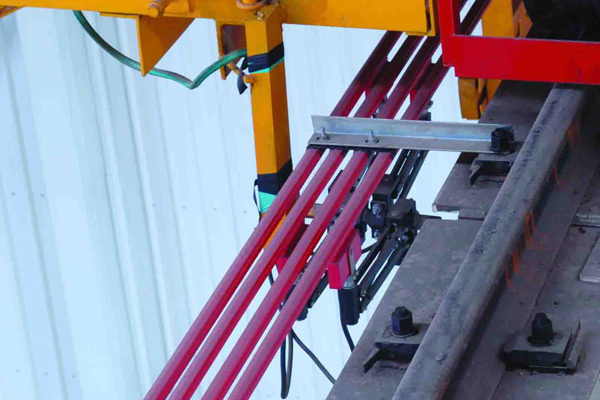

1. Single-Pole Conductor Rail

The single pole conductor rail materials are copper (200A-5000A) and aluminum (150A-3000A). The aluminum conductor rail is provided with a proven stainless steel contact surface (There is no need to add stainless steel strip in case the conductor used as busbar).

Any numbers of poles conductor rail can be installed vertically or horizontally, on straight or curved system. This single pole conductor rail system can be used outdoor with a protective cover which is antioxidant, UV resistant, impact resistant. For high temperature environment (-40 ~ 115℃), the protective cover is available with different sizes for different sized conductor bar. Besides, we supply the full set conductor rail system, including conductor rails, protective cover, jointing material, feed sets, end caps, hangers, expansion section, Current Collector, tow arm, support bracket, isolation section, etc.

Weihua also provides curved conductor rail with R≥1200mm. All conductor bars are approved by CCC, ISO9001 and CE.

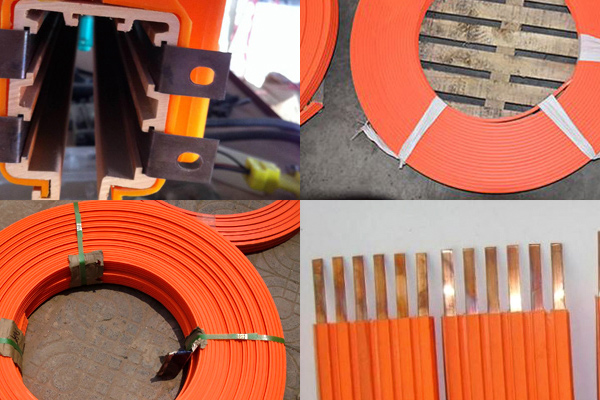

2. Seamless Conductor Rail

The seamless conductor rail is without any joints within length 1000m, which is available for 3P, 4P (50A, 80A, 100A, 120A, 140A) with load matching. Meanwhile 3P, 4P can be combined into the 6P or other level. Weihua provides complete seamless conductor rail system including components such as hanger clamp, bended joints, Current Collector, towing bracket, end tensioner/feeding, towing arm, carbon brush, support bracket, etc.

The seamless conductor rail has the features of quick and easy installation, economical and practical, stable operation, fast speed, less noise, flexible power supply, etc.

4P Conductor Rail Data:

Rating: 4P, 660V, 50A-120A

Conductor material: copper

Insulation cover/jacket: Rigid PVC within 75℃

Color: Orange (Eye-catching warning color)

3P Conductor Rail Data:

Rating: 3P, 660V, 50A-120A

Conductor material: copper

Insulation cover/jacket: Rigid PVC within 75℃

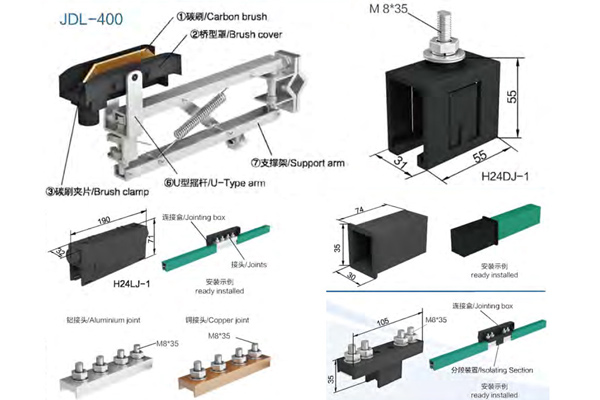

A current collector for multi-pole conductor tube

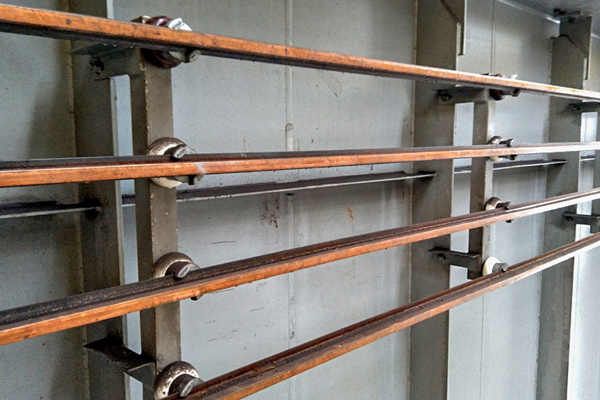

3. Copperhead Solid Conductor Rail

The copperhead solid conductor rail is an open style conductor system which is composed of a ladder type copper rod and a channel steel or a T shape copper row and a groove type aluminum. It is supported by high-strength special insulators to form a mobile sliding line that feeds lifting equipment.

The length of the conductor rail section is usually 6m and the insulation bracket installation spacing is generally 3m. This open copperhead solid conductor rail system is usually for large tonnage cranes. The power supply current is usually ≥800A, 1000A, 1600A, etc.
