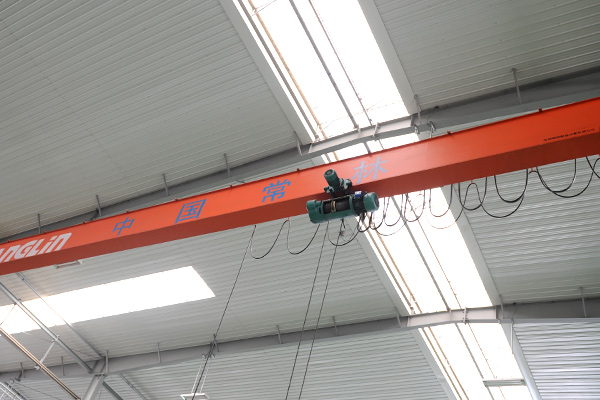

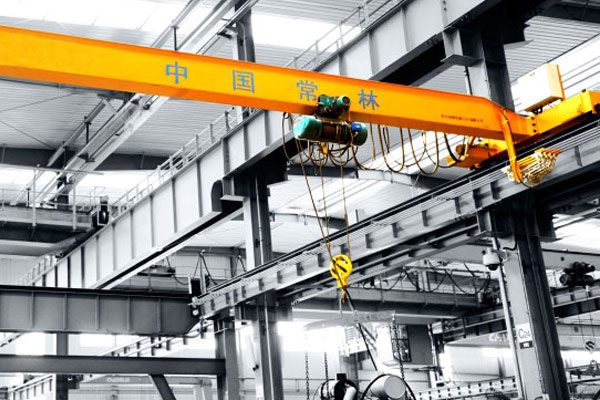

LB explosion-proof single girder bridge crane is used with HB explosion-proof electric hoists. The explosion-proof performance of motor and all electric equipment are in accordance with GB3836.2-2000.
TAG: Explosion Proof Bridge Crane
.jpg)
.jpg)
LB explosion-proof single girder bridge crane is used with HB explosion-proof electric hoists. The explosion-proof performance of motor and all electric equipment are in accordance with GB3836.2-2000.
1. Electrolytic aluminum cranes are auxiliary equipment for processing of large-scale pre-baked anodic aluminum electrolytic.
2. Bridge Crane for Electrolytic Aluminum is composed of feeding mechanism, slagging mechanism, the anode replace mechanism, shelling mechanism and aluminium discharging mechanism.
Product Name: Bridge Crane for Electrolytic Copper
Features:
1. Strengthen Design, Improving Accuracy
2. Highly Intelligent, Safe Operation
3. Various Controls, Automatic Operation
The electrolytic copper bridge crane is an intelligent bridge crane made according to the production process requirements of electrolytic copper.
.jpg)
1. Stack and transport raw anode blocks and roasting anode blocks (19 blocks in 1 group);
2. For waste block removal and qualified block insertion;
3. A 5 tons electric hoist for lifting the sporadic items.
The anode carbon block stacking crane is a special loading and unloading equipment for the carbon block factory and the carbon block warehouse of electrolytic aluminum plant.

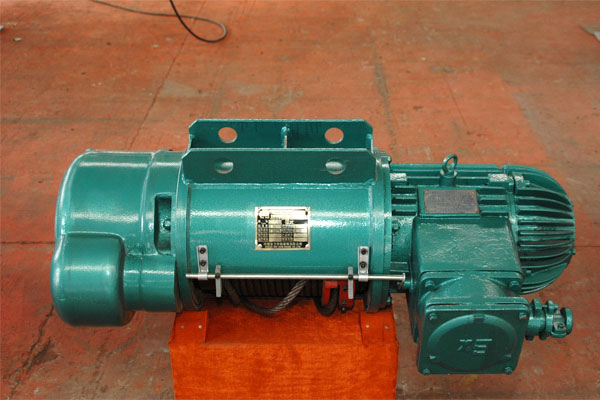

The design, manufacture, installation and operation of LB explosion-proof single girder bridge crane are in accordance with JB/T 10219 standard. It is used with HB explosion-proof electric hoists. The explosion proof bridge crane is a light type crane.
With explosion-proof grade of ExdIIBT4 or ExdIICT4, this crane can work at workshops with initiation ability lower than IIB or IIC, and danger area 1 or 2 (according to GB3836.1-2000). The explosion-proof performance of motor and all electric equipment are in accordance with GB3836.2-2000.
Pendant
|
Model |
HB (ExdIIBT4, ExdIICT4 ) |
|||||||
|
Lifting Weight (t) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
|
Lifting Height (m) |
3~9 |
6~12 |
6~30 |
6~30 |
6~30 |
6~30 |
9~30 |
9~30 |
|
Lifting Speed (m/min) |
8(0.8/8) |
7(0.7/7) |
3.5(0.35/3.5) |
|||||
|
Running Speed (m/min) |
20 |
20/30 |
18 |
|||||
|
Running Rail (m/min) |
10-20b |
16-28b |
10-20b |
20a-32c |
10-20b |
25a-50b |
32b-50b |
32b-63c |
|
Working Level |
|
|||||||
|
Power |
3-phase AC380V 50Hz |
|||||||
