The important features of a cross-track bridge crane is that the electric hoists can go across different cranes and bays by crossing the crane rail track on supporting beam. The 2 or more bridge cranes with outstretched hoist beam under the girder. So the bridge cranes can keep at the same horizontal level without gap, that is to say several crane hoist beam tracks are connected into one tracks for hoist going across and hoists can travel smoothly between different bridge cranes of different bays.

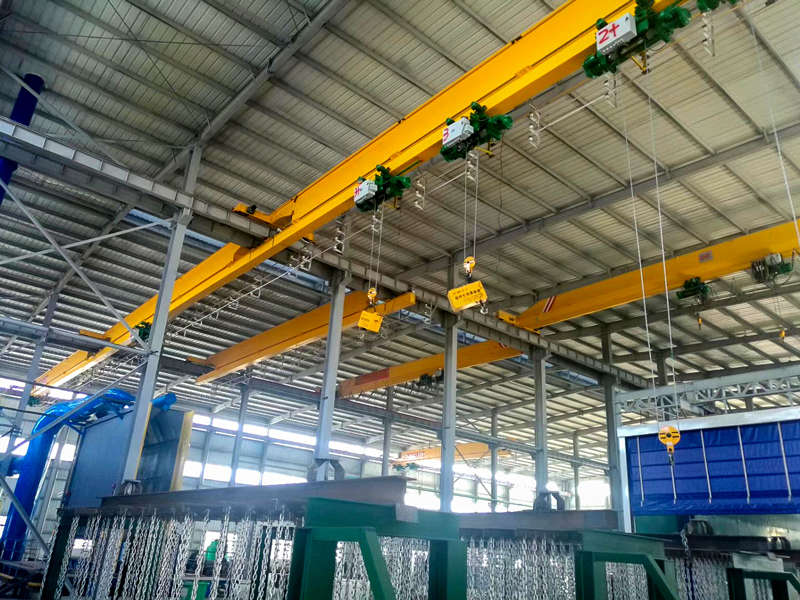

These pictures indicate the cross-track bridge cranes working at a Galvanizing workshop. They are single girder bridge cranes with special-designed hot-dip galvanizing electric hoists as hoisting device. Main paramters:

1. Application: Hot dip galvanizing industry

2. Lift capacity: 2t, 5t, 10t

3. Working duty: M6;

4. Lifting speed: 16m/min

5. Running speed: 30m/min

6. Protection level: IP55

We also make cross-track suspension cranes, Large span suspension crane, free-standing suspension cranes, light duty flexible suspension cranes, etc. for special use. In addition, all our electric hoist, bridge crane, gantry crane can be customized according to your requirement and industry need. Weihua provides professional lifting solutions and equipments for you.
